Window appearance

AgentMux lets you control window translucency at two levels: global opacity (applies to the whole instance) and per-window opacity (applies to one window independently).

Global opacity

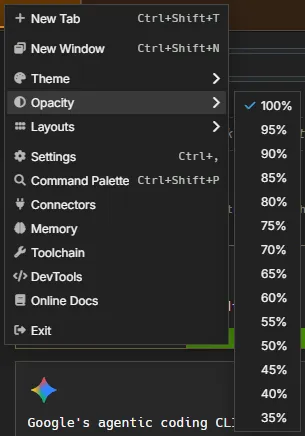

Global opacity is set from the hamburger menu (≡) → Opacity and applies to the entire AgentMux instance. Choosing any value below 100% makes all windows translucent at the same level.

This writes two settings into settings.json:

Key	Value (via slider)
`window:opacity`	`0.35`–`1.0` in 5% steps
`window:transparent`	`true` when opacity < 1.0, `false` at 100%

The slider floor is 35% — below that text becomes unreadable, so the UI clamps there. The underlying window:opacity key is unbounded in the schema; if you edit settings.json directly you can set values below 0.35 (at your own risk).

Changes take effect immediately. When you restart AgentMux, opacity is restored from settings.json automatically.

Platform support: Windows only. On macOS and Linux the value is stored in settings.json but produces no visible change — set_window_transparency in agentmux-cef is gated to #[cfg(target_os = "windows")] and the non-Windows path discards the args. macOS support is on the roadmap; Linux depends on compositor capability.

Per-window opacity

Per-window opacity lets each window have a different translucency level. Use this when you want one window fully opaque and another at 70%, for example.

Opening the slider

Click the version chip in the bottom status bar (shows the version number, e.g. v0.33.893).
The Instance Panel popover opens, listing all open windows.
Under each window name, drag the Opacity slider — the window dims in real time.
Release to confirm. The value persists across restarts.

Slider range

The InstancePanel slider clamps to 35%–100% in 5% steps, matching the global Opacity submenu. The percentage label to the right of the slider updates live. At 100% the transparency setting is cleared and the window returns to fully opaque.

As with global opacity, the underlying window:opacity key has no schema-level minimum — manual JSON edits to the window meta can go below 0.35, but the UI never produces those values.

Persistence

Per-window opacity is stored in the window’s object meta:

Key	Value (via slider)
`window:opacity`	`0.35`–`< 1.0` (UI range), or absent when 100%
`window:transparent`	`true` while opacity is active, `false` (or absent) at 100%

When you drag the slider to 100%, both keys are cleared — the window returns to fully opaque with no transparency layer active.

On next launch, AgentMux reads the stored meta and restores each window’s opacity individually. As of the window-topology-persistence work, this now also survives an unexpected crash (not just a clean quit and relaunch): the value is mirrored to the srv-side Window.opacity field via a SetWindowOpacity RPC, so if the host process is killed outright, the next launch can still recover the last-set opacity from srv storage rather than defaulting to opaque.

Interaction with global opacity

Per-window opacity and global opacity are independent. The per-window slider controls only the targeted window. The global hamburger-menu Opacity submenu controls all windows that don’t have a per-window override applied.

If you set a per-window opacity of 70% on Window A and set global opacity to 80%, Window A stays at 70% and Window B (no override) is at 80%.

Platform support

Per-window opacity uses Win32 SetLayeredWindowAttributes and ships Windows only. On macOS and Linux the slider value is stored to the window meta but produces no visible change (the host’s set_window_transparency command is #[cfg(target_os = "windows")]). macOS support is on the roadmap.
